Tigo 492-00000-51 RSS Transmitter Single Core Outdoor Kit

Tigo 492-00000-51 RSS Transmitter Pure Signal Single Core Outdoor Kit.

The Tigo RSS (Rapid Shutdown System) Transmitter completes the cost-effective rapid shutdown system architecture when paired with Tigo's UL-certified Fire Safety solutions - including the TS4-A-F (add-on), TS4-A-2F (add-on for two modules). The RSS Transmitter sends a signal via PLC (Power Line Communication) to the TS4-F units to keep PV modules connected while powered on. TS4-F units automatically enter rapid shutdown mode when the RSS Transmitter is switched off and resume energy production when power is restored to the RSS Transmitter. The RSS Transmitter with Pure Signal technology can link multiple RSS Transmitters together, enabling one coordinated keep-alive signal to the array to maximize signal integrity, even in large and complex solar installations. This solution complies with NEC 2014, 2017, and 2020 690.12 rapid shutdown specifications utilizing power-line communication (PLC). Available with Pure Signal technology for multi-transmitter sites, as a Kit, DIN Rail, or PCBA for integration into inverters.

Functions

• Rapid shutdown initiation device for Tigo TS4-A-F and TS4-A-2F

Features and benefits

• Multivendor UL Certified solution to meet the NEC 690.12 2017/2020 code requirements
• The Module-level deactivation with automatic or manual shutdown
• Easy installation, no commissioning process is required
• Compatible with the largest network of UL-listed residential & commercial inverters
• Integrated into many inverters, enabling plug and play installations with Tigo TS4-A-F and TS4-A-2F
• NEW: available with Pure Signal technology, to simplify the design and installation of sites with multiple transmitters

What's Included?

• NEMA 3R, IP68 Polycarbonate Enclosure
• 120/240VAC Power Supply
• Single Core RSS Transmitter
• DIN Rail

FAQs

• Can I use an RSS transmitter with the TS4-A-F?
  Yes, in fact an RSS transmitter is required for the TS4-A-F or the TS4-A-2F to function.
• Can two RSS transmitters be powered from the same power supply?
  Yes, but you must measure that each unit is receiving 12V and you cannot double lug. Power must be distributed evenly. Crosstalk would be a major concern, so required design practices would be essential (refer to the RSS Installation Guide). If equipment will be in close proximity, you should use Pure Signal to mitigate crosstalk.
• Are the Tigo RSS Transmitter cores current transformers (CTs)?
  No, the Tigo RSS Transmitter cores are not CTs. The cores facilitate the signal to be transmitted on the DC wiring. Please refer to Tigo Communication Basics. If you need a CT, you may want to consider purchasing a meter.

Attachments

• Tigo RSS Transmitter Outdoor Kit Datasheet
• Tigo RSS Transmitter Datasheet

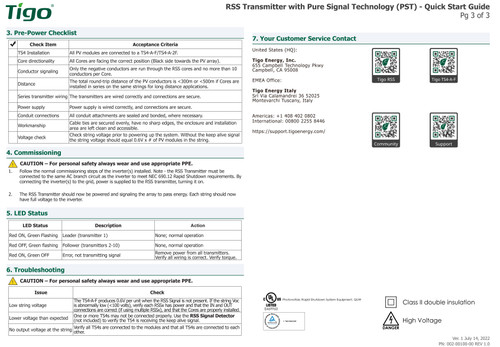

• Tigo RSS Transmitter with Pure Signal technology Quick Start Guide
• Tigo RSS for Fire Safety Installation Manual
