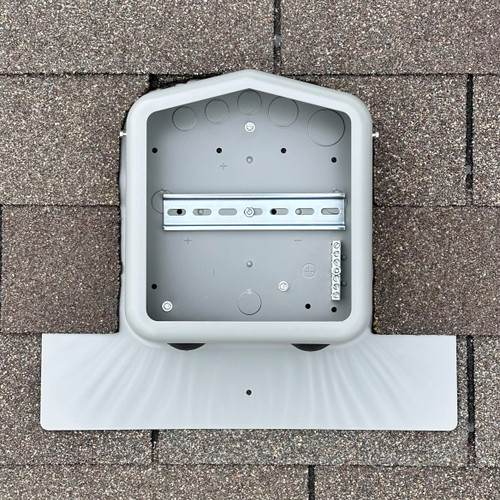

SolaDeck 0799-5G UL 50 Type 3R Pass-Thru Enclosure

Soladeck 0799-5G Outdoor Pass-Thru Enclosure

With over 2 million junction boxes in the field, NO failures and a lifetime warranty, SolaDeck is the toughest junction box in the industry and simplest to install.

Features

• Slotted cover locks into place with one pre-installed set screw.
• Low profile cover allows side and bottom penetration to the sidewalls.
• Installed din rail can be rotated horizontally or vertically.
• Two 3/4" pre-punched holes at the base of the SolaDeck. Two NEMA 4X plugs come installed. These can be removed to insert your fitting or conduit without drilling.
• Manufactured, powder coated, and assembled entirely in Wisconsin. Made from 18GA G90 galvanized steel sourced in the United States.

Specifications

• Base and cover stamped from G90 galvanized steel
• 7" Din rail and 2 position ground block factory installed
• 2/12 – 12/12 roof slopes
• ETL listed and labeled
• Conforms to the UL1741 standard for multi-string combining
• Rated to the UL50 Nema Type 3R, 11th Edition standard for simple residential pass through
• CSA C22.2 No. 290
• 600 VDC/115 amps
• 240 VAC/60 amps
• Ambient temperature rating (-35°C) – (75°C)
• Lifetime Warranty

Attachments

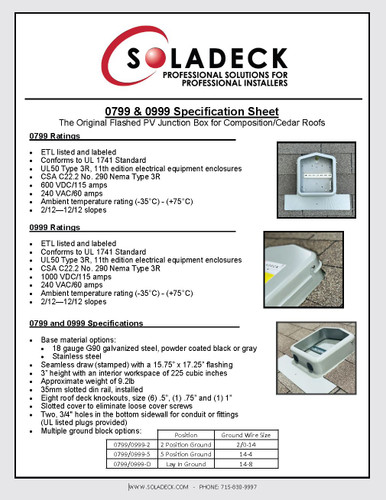

• SolaDeck 0799 Series Specifications Sheet
• SolaDeck 0599-0799-0999-0766-41AD Installation Manual
• SolaDeck 0799 Series Drawing
