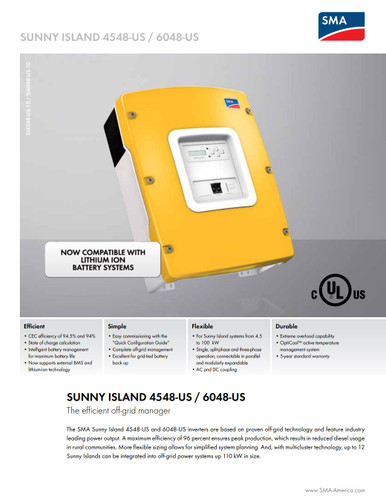

SMA SI6048-US-10 Sunny Island 6048 Inverter/Charger

SMA SI6048-US-10 Sunny Island 6048 Inverter/Charger 120VAC 48VDC 6.0 kW. (Bidirectional battery inverter for stand-alone operation.)

The new SMA Sunny Island 4548-US and 6048-US inverters are based on the proven off-grid technology in the Sunny Island 5048-US but now feature 20 percent more power output. A maximum efficiency of 96 percent ensures peak production, which results in reduced diesel usage and makes a smaller dimensioning of the PV array possible. The new Sunny Island with two different power ratings enable more flexible system sizing. And, with multicluster technology, up to 12 Sunny Islands can be integrated into off-grid power systems up 100 kW in size.

FEATURES

• Max. efficiency: 96 percent
• CEC efficiency: 94 % and 94.5 %
• State of Charge Calculation
• Intelligent battery management for longer battery lifespan
• Systems from 2 kW to 100 kW
• Extreme overload capacity
• OptiCool active temperature management system
• 5-year standard warranty

FAQs

• How do I link SMA Sunny Islands?
  Refer to page 57 of the Operating Manual in the link under Attachments
• Is the SMA Sunny Island a pure sine wave inverter?
  Yes, the SMA Sunny Island is a pure sine wave inverter.
• Is the SMA Sunny Island Inverter/Charger an MPPT or PWM charge controller?
  The SMA SI6048-US-10 Sunny Island 6048 Inverter/Charger is not a charge controller. If you need a charge controller in addition to the Sunny Island Inverter/Charger, you would need to purchase a separate charge controller for the SMA Sunny Island inverter/charger.

Resource

• Approved Batteries for Sunny Island Inverters

Attachments

• SMA SI6048-US-10 Datasheet
• SMA Sunny Island Operating Manual
• SMA Sunny Island to EDMM-US-10 Data Manager Connection
• SMA Limited Factory Warranty
