Schneider Electric Conext SW DC Power Distribution Panel

Schneider Electric Conext SW DC Power Distribution Panel

$396.99

SKU:
865-1016
UPC:
3606480607943
Condition:
New
Availability:
Ships in 1 business day or less.
Weight:
16.00 LBS
Shipping:
Stellar Speed! FREE SHIPPING

Schneider Electric Logo

Schneider Electric 865-1016 Conext SW DC Power Distribution Panel RNW8651016

The ConextTM SW Power Distribution Panels are pre-wired out of the box and labeled to support the integration of Conext SW inverter/chargers with a Conext MPPT Solar Charge Controller, battery bank and load centers. Designed to save installers significant time, effort and costs on every installation, the Distribution Panels offer excellent value when compared to customized options.

The solution set includes a DC distribution panel complete with a pre-installed 250 A DC breaker and additional breaker slots for integrating multiple DC power sources. The universal DC Breaker Panel is pre-wired for quick installtion with a single Conext SW and ensures a safe and code compliant connection to the battery bank and solar charge controller. The DC Breaker Panel features space for a DC shunt, two spaces for battery breakers and two spaces for breaker connections to MPPT 60-150 solar charger controllers. Two DC Breaker Panels can be stacked for dual Conext SW applications. Enclosure enables side monuting for a single MPPT 60-150 and features a mounting space for a System Control Panel (SCP).

Why choose Conext SW Power Distribution Panels

  • Higher return on investment
    • Integrate SW inverter/chargers and MPPT Solar Charge Controllers with a single battery bank
    • Repeatable standard installation that saves time and money
  • Flexible
    • Additional DC and AC breaker slots available for expanded capacity
    • Key holes available on side of DC panel for integrating MPPT 60 Solar Charge Controller
    • Use AC distribution panels as optional load centers
  • Easy to service
    • Breaker configuration allows SW inverter/chargers to be AC bypassed for servicing
    • Removable front cover allows for visual inspection

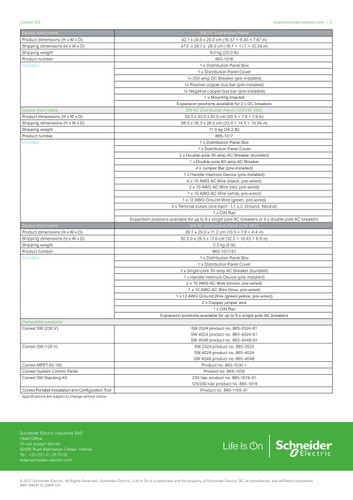

What's Included

  • 1 x Distribution Panel Box
  • 1 x Distribution Panel Cover
  • 1x 250-amp DC Breaker (pre-installed)
  • 1x Positive copper bus bar (pre-installed)
  • 1x Negative copper bus bar (pre-installed)
  • 1 x Mounting bracket
  • Expansion positions available for 2 x DC breakers
