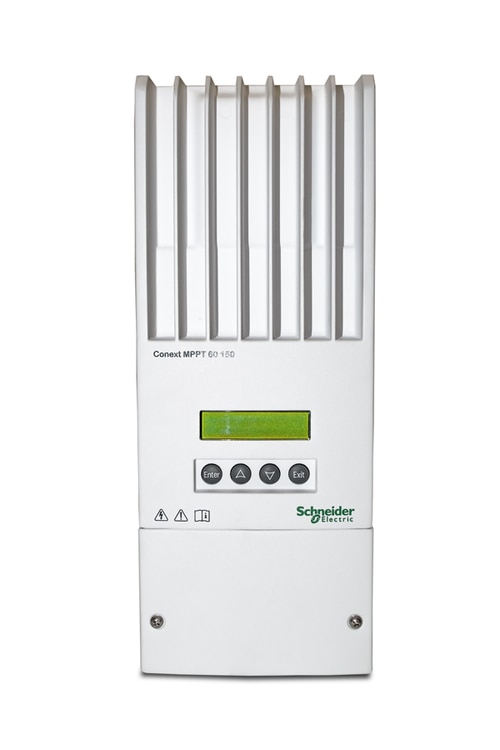

Schneider Electric Conext MPPT 60 150 Solar Controller

Schneider Electric 865-1030-1 Conext MPPT 60 150 Solar Controller RNW86510301

The ConextTM MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.

Why choose Conext MPPT 60 150

• Higher return on investment
  • Maximum Power Point Tracking (MPPT) algorithm continually seeks the maximum power available from the PV array
  • Improve battery life with selectable multi-stage temperature compensated charging
  • Five-year standard warranty

• Flexible
• Stand-alone application or full integration with Conext XW Pro, XW+ and Conext SW inverter charger system
• Compatible with any brand of PV Module
• Available remote monitoring and configuration
• Easy to install
  • Configurable auxiliary output
  • LCD screen with face plate buttons for configuration and system monitoring
  • Integrated PV ground fault protection for negative grounded arrays

FAQs

• Do I need the Schneider Electric 865-0330 InsightHome or 865-0335 InsightFacility to program my Schneider Electric 865-1030-1 Conext MPPT 60 150 Solar Controller?
  No, you do not need the Schneider Electric Insight Home or Facility to program this charge controller because the charge controller has a built-in display and control panel.
• Are Schneider Electric charge controllers capable of a diversion/dump load?
  No, Schneider Electric charge controllers do not have a diversion/dump load feature.

Attachments

• Schneider Electric Conext MPPT 80 150 Solar Controller Datasheet
• Schneider Electric 865-1030-1 Instruction Manual
