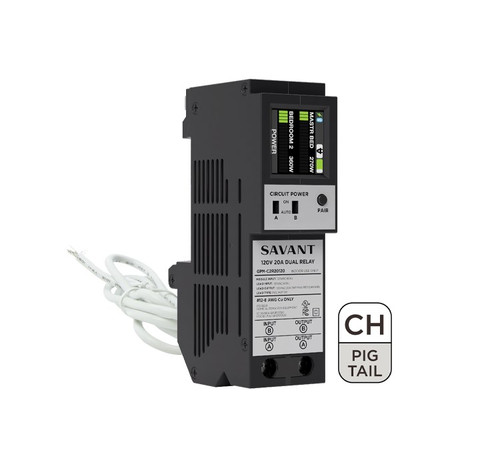

Savant GPM-C2R20120-21 CH Dual 20A Power Module Pigtail

Savant GPM-C2R20120-21 CH Dual 20A Power Module Pigtail

Savant's Dual 20A Power Module (120V AC with Current Transformer - CH™ compatible with pigtail neutral) controls and monitors up to two 20 amp circuits; ideal for outlets, kitchen appliances, lighting, and more.

• Works with 3/4 inch Eaton CH™ plug-on neutral load centers.
• Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
• Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)
• Deployment and configuration via Savant Power and Light 2.0 App or through RacePoint Blueprint
• Control Capability for loads up to 2400 VA (volt-ampere) per channel
• Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time
• Dynamic remote management of loads
• Communicates via Bluetooth Low Energy (BLE) technology
• Color LCD display for easy identification and load status
• Two switches positioned on front of module allow power to outputs A and B to be toggled manually

SPECIFICATIONS

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 5% to 85% Relative Humidity (non-condensing)
• Location: Indoor Use Only

• Length: 4.96 in. (12.60 cm); Shipping 7.48 in. (19.0 cm)
• Width: 1.46 in. (3.70 cm); Shipping 1.69 in. (4.29 cm)
• Height: 3.39 in. (8.61 cm); Shipping 4.17 in. (10.60 cm)
• Weight: .54 lbs (.24 kg); Shipping 1.0 lbs. (.45 kg)

• Input Power (powers the module): 120V AC (+/- 10%) @ 60 Hz, 0.1A max
• Input Power (from feeder breaker): 240V AC @ max power load
• Load Power: 2400VA max per channel (20A resistive load / 1 HP max per channel)
• Features of Automatic Action: Type 1.B action

• Wireless: Bluetooth 5 Low Energy (BLE) 2.4 GHz radio frequency

• Safety and Emissions: FCC Part 15, UL, ICES 003
• Contains FCC ID: PUU-QP2R20120
• Contains IC: 10798A-QP2R20120
• RoHS: Compliant

• Standard Configuration: Relay On/Off type loads (home automation)

• Tighten Torque: 3.0 Nm
• Wire Type: Copper (Cu) only
• Pollution Degree: 2
• Purpose of Control: Operating Control, Smart Relay Control Module or equivalent
• Software: Class A
• Impulse Voltage: 2500V

• Open Type: Independently mounted for flush mounting

• Savant OS: da Vinci 10.1

• Basic warranty period is five (5) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.

• Savant GPM-C2R20120-21 Quick Reference and Installation Guide
