S-5! PVKIT 2.0 MidGrab Rooftop Solar Panel System in Black

S-5! PVKIT 2.0 MidGrab Rooftop Solar Panel System in Anodized Black

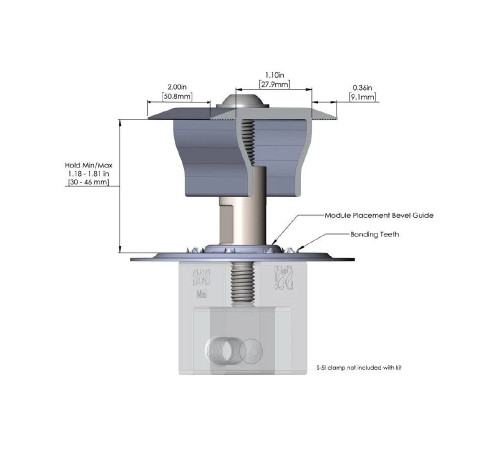

The new S-5! PVKIT 2.0 MidGrab is used at all panel-to-panel connections. The Module Placement Bevel Guide makes the module placement easier. The mounting disk is multi-directional and rails are not required. The PV grab ears are broader for ease of installation and secure module engagement. For edge of field conditions, use can also use the PVKIT 2.0 Midgrab, or the PVKIT 2.0 EdgeGrab.

PV Kit fits a wide array of module thicknesses. Use with S-5! mini clamps enables fitting to all standing seam metal roof profiles of any material. When paired with S-5! brackets, the PVKIT 2.0 also works on all trapezoidal ribbed and corrugated metal roofs. If desired, the PVKIT can also be used with regular S-5 clamps.

• The MidGrab can also be used at an edge condition if desired.
• Modules can be easily installed from ridge-down or eave-up.
• More slots for wire securement.
• PVKIT 2.0 is UL 2703 Listed.
• S-5 Mini Clamps and Brackets are not included.
• These clamps are recommended for use with the S-5-PVKIT 2.0 MidGrab:
  • S-5-E mini
  • S-5-H mini
  • S-5-H90 mini
  • S-5-K Grip mini
  • S-5-N 1.5 mini
  • S-5-N mini
  • S-5-Q mini
  • S-5-R465 mini
  • S-5-S mini
  • S-5-T mini
  • S-5-U mini
  • S-5-V mini
  • S-5-B mini
• These Brackets can also be used with the S-5-PV Kit 2.0 EdgeGrab:
  • CorruBracket
  • CorruBracket 100T
  • CorruBracket 100T mini
  • VersaBracket VB-47
  • VersaBracket VB-67

What's Included?

• 1 Midgrab and bolt
• 1 Disc

Attachments

• S-5! PVKIT 2.0 Brochure
• S-5! PVKIT 2.0 Solar Manual
• S-5! PVKIT 2.0 Installation Instructions
• S-5! Solar Manual
