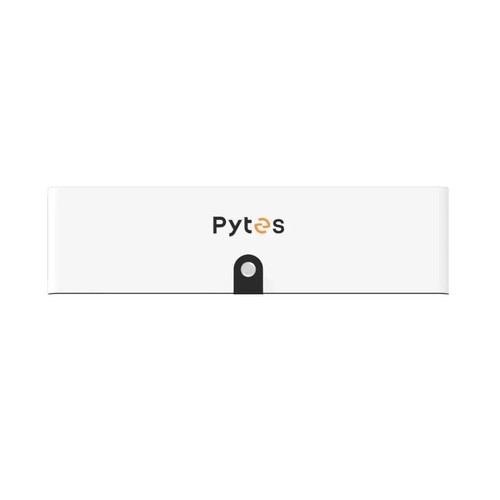

PYTES Energy Pi LV1 BCU Battery Control Unit

PYTES Energy Pi LV1 BCU Battery Control Unit. Battery Module Units (BMU) shown in images not included.

The PYTES Energy Pi LV1 makes for a compact and easy installation. It's a simply as stacking one battery module on top of the other. The Pi LV1 is specially designed for installations where space is limited. You can expand the Pi LV1 battery capacity to a whopping 30.72kWh max.

Safety
The Pi LV1 boasts an LFP battery designed with safety in mind,. UL9540A certified and tested in large-scale applications, the Pi LV1 provides first-rate backup power protection. Field-proven BMS in each battery module, and an integrated DC breaker and fuse will help to expedite the permitting process with local authorities having jurisdiction (AHJ).

Plug-&-Play 15 Minute Installation
The Pi LV1 incorporates an installer-friendly quick connector and Plug-and-Play design, streamlining the installation process by eliminating the need for hand-wiring. Its compact footprint and reduced weight enable you to complete the installation in just 15 minutes. Installing your battery bank has never been easier.

Scalable on Demand
The modular design of the Pi LV1 enables flexible configuration based on your needs, allowing each stack's capacity to range from 10.24 to 30.72 kWh. It is a versatile and scalable energy storage solution that gives you the capability to expand your Pi LV1 system to a massive 122.88 kWh, ideal for small and large-scale residential or commercial projects alike.

Smart Battery Bank
Pytes' specialized Smart Monitor effortlessly achieves real-time monitoring, allowing for seamless remote upgrades, and minimizing time spent on tech support issues.

Powerful Batteries
Delivering powerful output, the Pi LV1 achieves a continuous output of 14.08kW and a surge output of 25.6kW when stacking 6 modules. This enhances energy efficiency and contributes to energy bill savings.

Outdoor Rated Enclosure
Solidly constructed to IP55 protection standards, Pi LV1 provides a durable waterproof and dustproof body, suitable for both indoor and outdoor installations.

Attachments

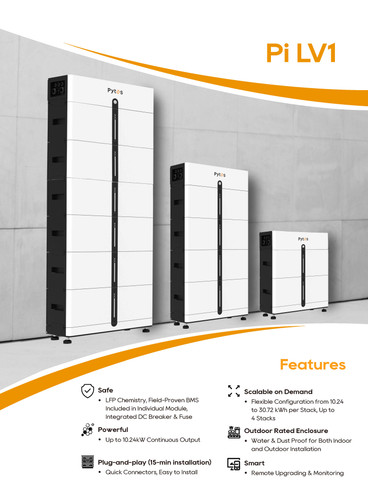

• PYTES Energy Pi LV Datasheet
• PYTES Energy Pi LV User Manual
