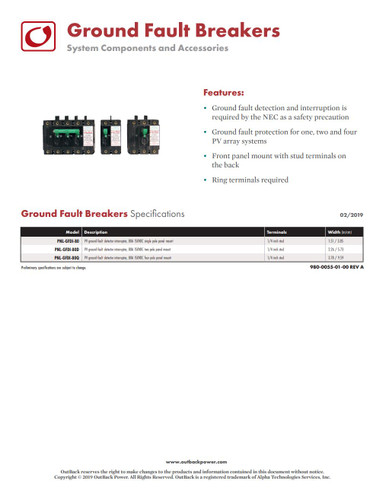

OutBack Power PNL-GFDI-80D PV Ground Fault Detector 2-Pole

Outback Power PNL-GFDI-80D PV Ground Fault Detector 80 Amp 150VDC Dual Pole, Panel Mount.

Ground fault detection and interruption is required by the NEC as a safety precaution. The OutBack PV Ground-Fault Detection and Interruption System protects wiring and system components for one, two or four PV arrays when used in a GSLC, FLEXware 250, FLEXware 500 or FLEXware 1000. Front panel mount with stud terminals on the back. Ring Terminals.

Product Higlights

• Ground fault detection and interruption
• Protects wiring and system components for one, two or four PV arrays
• For use in a GSLC, FLEXware 250, FLEXware 500 or FLEXware 1000

Variations

• PNL-GFDI-80 PV Ground-Fault Detector Interrupter 80 Amp 150Vdc single pole panel mount
• PNL-GFDI-80D PV Ground-Fault Detector Interrupter 80 Amp 150Vdc two pole panel mount
• PNL-GFDI-80Q PV Ground-Fault Detector Interrupter 80 Amp 150Vdc four pole panel mount

FAQs

• Does the GFP breaker need to match my string voltage the same as a DC breaker?
  Yes, the GFP breaker must match the string voltage the same as a DC breaker, however, the GFP breaker is not allowed as a disconnect and will not provide overcurrent protection.
• Can I have two breakers on the same circuit, such as a DC breaker and a GFP breaker?
  Yes, you can have two breakers on the same circuit. The DC breaker can act as a disconnect and will provide overcurrent protection, whereas the GFP breaker will provide ground-fault protection.
