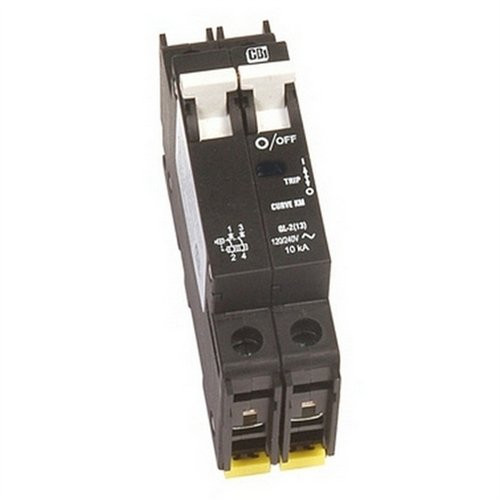

OutBack Power DIN-50D-AC-480 Circuit Breaker 50A 2P

OutBack Power DIN-50D-AC-480 Circuit Breaker 50A Dual Pole DIN rail mount with set-screw compression terminals, #14 to 2 AWG (1.62 mm to 6.54 mm). Can be used for input, output or load circuits.

OutBack offers a full line of integration hardware designed to complement our power electronics products, reduce the time of installation and meet local electrical codes. It is our goal to engineer and build attractive, flexible and well designed integration hardware that is built to last.

Variations

• DIN-15D-AC: 15 Amp 120/240 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide; branch circuit rated 10k AIC
• DIN-20D-AC: 20 Amp 120/240 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide; branch circuit rated 10k AIC
• DIN-25D-AC: 25 Amp 120/240 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide; branch circuit rated 10k AIC
• DIN-30D-AC-480: 30 Amp 277/480 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide
• DIN-50D-AC-480: 50 Amp 277/480 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide
• DIN-60D-AC-480: 60 Amp 277/480 VAC 50/60 Hz Dual Pole 1.0 Inch (26 mm) wide
