OutBack Power DIN-15-DC PV Array DIN Breaker 15A 150V

OutBack Power DIN-15-DC PV Array Circuit Breaker 15 Amp 150VDC Single Pole DIN rail mount with set-screw compression terminals. Mount 0.5" (13 mm) wide - #14 to 2 AWG (1.62 mm to 6.54 mm diameter) clamp terminals.

OutBack offers a full line of integration hardware designed to complement our power electronics products, reduce the time of installation and meet local electrical codes. It is our goal to engineer and build attractive, flexible and well designed integration hardware that is built to last.

Technical Specifications

• Rail mount breakers
• Hydraulic-magnetic type
• Not affected by high ambient temperatures.

Variations

• DIN-1-DC: 1 Amp 125VDC single pole DIN
• DIN-2-DC: 2 Amp 150VDC single pole DIN
• DIN-3-DC: 3 Amp 150VDC single pole DIN
• DIN-4-DC: 4 Amp 150VDC single pole DIN
• DIN-5-DC: 5 Amp 150VDC single pole DIN
• DIN-6-DC: 6 Amp 150VDC single pole DIN
• DIN-7-DC: 7 Amp 150VDC single pole DIN
• DIN-8-DC: 8 Amp 150VDC single pole DIN
• DIN-9-DC: 9 Amp 150VDC single pole DIN
• DIN-10-DC: 10 Amp 150VDC single pole DIN
• DIN-15-DC: 15 Amp 150VDC single pole DIN
• DIN-20-DC: 20 Amp 125VDC single pole DIN
• DIN-30-DC: 30 Amp 125VDC single pole DIN
• DIN-50-DC: 50 Amp 125VDC single pole DIN
• DIN-60-DC: 60 Amp 125VDC single pole DIN

Attachments

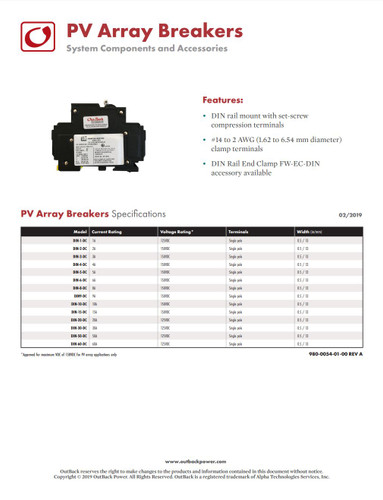

• OutBack Power PV Array Breakers Datasheet
