MidNite Solar MNPV16HV-DLTL 4X Combiner

MidNite Solar MNPV16HV-DLTL 4X Combiner

The MNPV16HV-DLTL 4X's red handle is LOCKABLE IN THE OFF POSITION!

8-strings into the combiner with 2 separate 60A strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters. This configuration will break the positive and negative of 2 separate 600VDC strings.

The difference between the regular Disco combiner and the DLTL version is that the MNPV16HV-DISCO-4X is made for a single 16 string inverter, two 8-string inverters or one 8-string transformerless where as the DLTL is set up for 8-strings in and 2-strings out for Dual MPPT on transformerless.

SMA requested MidNite Solar to design and build these DLTL combiners. There are 8 strings entering the combiner with 2 separate strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters.

Specifications

• Type 4X aluminum enclosure (No Rust)
• Number of Fuse Holders (MNTS) included - 16
• Fuses included
• Current Rating - 120A
• Max. Output Wire Size - 2/0
• Output Circuits - 2
• 90 degree C connections
• 1/2 strain reliefs (MNSR-1000) included
• See through dead front and color coded bus bar guards
• #6 AWG internal wiring
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

Hardware Includes:

• Eight - 1/2" strain reliefs (MNSR-1000)
• Twenty - 1/2" locknuts
• Fifteen hole plugs with Gaskets (MNHOLE PLUG 1/2)
• One blue wrench (MNWRENCH)

Attachments

• MidNite Solar MNPV16HV-DLTL 4X HV Disconnecting Combiner Manual

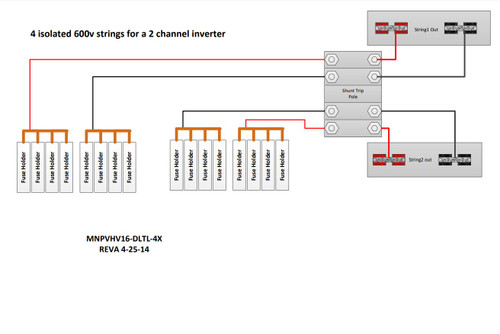

• MidNite Solar MNPVHV16-DLTL-4X Wiring Diagram
