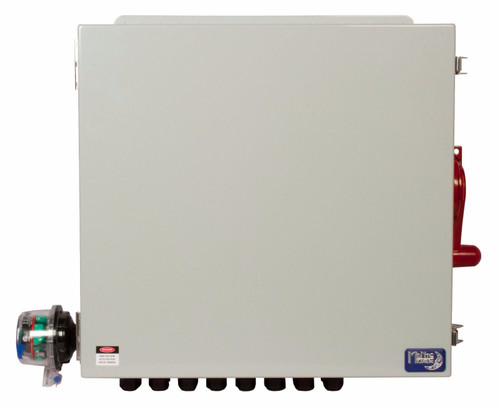

MidNite Solar MNPV16HV-DISCO 4X Disconnecting Combiner

MidNite Solar MNPV16HV-DISCO 4X Disconnecting Combiner.

The MNPV16HV DISCO 4X's red handle is LOCKABLE IN THE OFF POSITION!

• Convertible configuration (field configurable)
• Sixteen strings combined for up to 230 Amps single pole disconnect)
• 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect)
• 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect)
• Disconnect switch has built in shunt trip with positive feedback
• See thru deadfront & color coded busbar guards included
• Optional PV connected power supply
• Load Break Rated
• Optional AC connected power supply for redundancy
• Type 4X aluminum enclosure (no rust, won't turn to dust) conduit/strain relief holes punched
• 90o C connections
• Fuseholders (MNTS) installed
• 15A/600V fuse or 20A fuse installed
• Meets 2014 NEC 690.12
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

MNPV16HV Disco 4X PV Disconnecting Combiner, 5 poles, 100 amp load break rated or 175 amps load break rated for busbars and switch, 600 volt max. The difference between the regular Disco combiners and the DLTL version is that the MNPV16HV-Disco-4X is made for a single 16 string inverter, 2 8 sting inverters or one 8 string transformerless where as the DLTL is set up for 8 strings in and 2 strings out for Dual MPPT on transformerless.

Hardware Includes:

• One MNSPD-600 (Surge Protection Device)
• Sixteen 1/2" strain reliefs (MNSR-1000)
• Twenty 1/2" LOCKNUTS
• Fourteen HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
• Two 10-32 X 7/8" SCREWS
• Two 10-32 X 3/6" SCREWS
• Two 3/8“ 16 X 7/8" BOLTS
• Twelve 10-32 KEPS NUT
• One TERMINAL PIN 18-22 AWG.
• One TERMINAL PIN 10-12 AWG.
• One WHITE INSULATOR
• One BLUE WRENCH (MNWRENCH)

Variations

• MNPV16HV-DISCO 4X
• MNPV16HV-DISCO 4X-20: Same combiner only with 20 amp fuses.

Attachments

• MidNite Solar MNPV8HV Assembly Instructions
• MidNite Solar Two Inverter Conversion
• MidNite Solar NON-Isolated Conversion
• MidNite Solar Parallel Conversion
• MidNite Solar MNPV16HV-DISCO 4X Disconnecting Combiner Brochure
• MidNite Solar MNPV16HV-DISCO 4X ATM MNPV8HV and MNPV16HV Disco
• MidNite Solar MNPV16HV-DISCO 4X MNPSB Instructions
