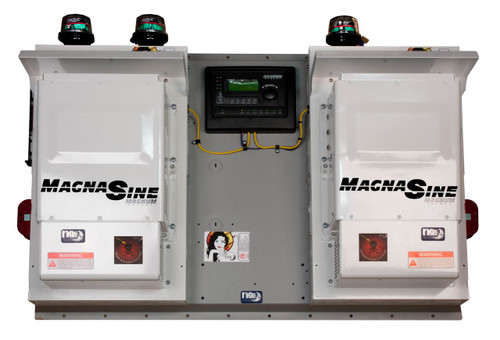

MidNite Solar MNEMS4024PAEACCPL-DUAL Prewired AC Coupled System

MidNite Solar MNEMS4024PAEACCPL-DUAL Prewired AC Coupled System

Options

• ME-AGS-N: To include Auto Generator Start (AGS) module preinstalled, please choose kit combo that includes "AGS"
• ME-BMK-NS: To include Battery Monitor Kit (BMK) module preinstalled, please choose kit combo that includes "BMK"
• RSS: To include Rapid System Shutdown (RSS) module preinstalled, please choose kit combo that includes "RSS"

Features

• Environmental Rating - Type 1 (Indoor)
• Dual Magnum MS4024PAE 120/240 VAC Inverter
• Dual 4000 watt 24 volt inverters
• AC Coupled
• AC Bypass assembly
• 3 MNSPD300's (Surge Protection Devices)
• Magnum Router
• Good for up to 7,200 Watts of Grid tie inverter
• Dual 175 amp Battery Main Breakers
• General labor for assembly, test and crating
• 1 Magnum Battery Temperature sensor (BTS)
• All MidNite components have a 5 year warranty. Magnum Inverters and components are covered by Magnum's manufacturers warranty.
• Listed by ETL for US & Canada
• Made in the USA

AC coupled system using our E-Panel with 2 of the Magnum MS4024PAE inverters. The MNEMS4024PAECLCPL-Dual is a complete ready to use (Less Batteries and cables) AC coupled system. The AC coupled system will give you battery backup when the utility is down and also allow the existing grid tie system to charge the batteries and run loads. (Batteries not included.)

NOTE: Magnum components warrantied by Magnum Energy.
