MidNite Solar MNE250SW E-Panel Schneider Electric Conext SW

MidNite Solar MNE250SW E-Panel for Schneider Electric Conext SW Inverter/Charger.

Features: inverter battery breaker, knockouts for up to 6 din rail mount AC or DC breakers (or the optional Bypass Kit) and 4 panel mount or DC-GFP80 breakers. Massive tin plated copper bus bars directly connect to the SW's battery terminals, bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, 500 amp shunt, Location to mount 2 Charge controllers to the top. There are knockouts that correspond to the 1 inch knock outs in the charge controller.

• Main Breaker Current Rating - 250
• Number of spaces - 10
• Environmental Rating - Type 1 (Indoor)
• Max. Wire Size - 4/0 AWG
• Max. AC Voltage - 240VAC
• Max. DC Voltage - 300VDC
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

Variations

• MNE250SW: Main Breaker Current Rating - 250A
• MNE250SW-E: The MNE250SW-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.

E-Panel for a single Schneider Electric Conext SW inverter/charger. The SW inverter is mounted directly to the right of the E-Panel. Available with the 175 amp breaker (MNE175SW) for the SW2524 or with the 250 amp breaker (MNE250SW) for the SW4024. Save some money over the price of the Schneider Electric distribution panel and get additional features.

Options

• MidNite Solar MNSW-BP E-Panel: Back plate for the Conext SW inverter and E-Panel. Powder coated to match the Conext SW inverter.

Attachments

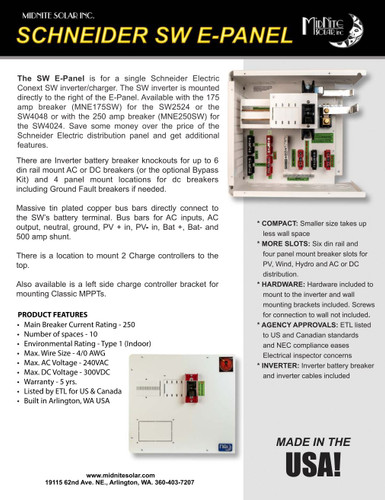

• MidNite Solar Conext SW E-Panel Brochure
• MidNite Solar Conext SW E-Panel Instruction Manual
• MidNite Solar Classic Simple Flow Diagram
