MidNite Solar MNCLIP1.5KAC0.8 AC Clipper 1500 Watts

MidNite Solar MNCLIP1.5KAC0.8 AC Clipper 1500 Watts

This item is built-to-order and will dropship from the manufacturer. We DO NOT accept returns on Pre-Wired systems or custom built equipment.

Features

• Environmental Rating - Type 1 (Indoor)
• Warranty - 5 yrs.
• Made in the USA

Generally speaking if your turbine has larger than a 6 foot rotor diameter and or is rated for 1KW or more you may need the 4KW clipper. The 1,500 watt AC Clipper comes in several different resistance values. The standard values available are 0.8 and 2.0 ohms per phase.

The MidNite Clipper is designed to control Wind or Hydro turbines and work with the Classic to charge your battery. The Clipper communicates with the Classics to slow the turbine when the batteries are full, and also contains a stand alone self powered adjustable max VOC limiting circuit. The AC Clipper is designed to work with AC turbines and was designed for up to 1.5kw maximum turbines.

The AC Clipper contains two 277 VAC 50 Amp 3 phase AC breakers (one for a stop switch) and a 1200 volt 200 Amp 3 phase bridge rectifier.

Attachments

• MidNite Solar Clipper Brochure
• MidNite Solar Clipper Instruction Manual

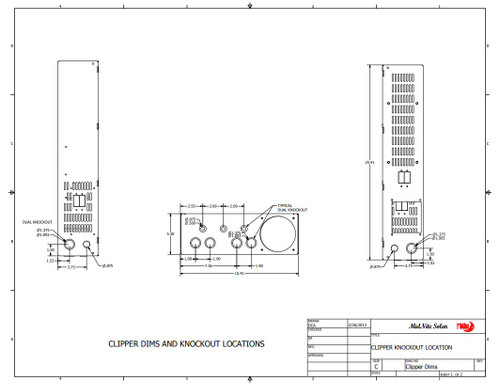

• MidNite Solar Clipper Drawing
• MidNite Solar Wind Turbine Matrix
