MidNite Solar MNBRAT Brat Charge Controller

MidNite Solar MNBRAT Brat Charge Controller.

• SELECTABLE CHARGING MODES
  20A charger with 10A load control, 30A charger without load control
• NO RELAYS, NO FANS, NO EXTERNAL HEAT-SINK
• TYPE 3R ENCLOSURE
• P/V INPUT VOLTAGE MAXIMUM - 60 volts
• LED’S
  Four LED’s for Bulk, Float, Load On and Low Battery. Patterned blinking LED’s provide feedback about fault conditions.
• NOMINAL BATTERY VOLTAGE
  12 or 24V - Selectable
• 10 AMPS MAXIMUM LOAD CIRCUIT RATING
• LOAD CIRCUIT
  A unique feature of the Brat is the load circuit. This versatile feature can be used for many purposes including running well pumps, electric fences, or billboard lights in remote areas.
• CUSTOMIZABLE LIGHTING CONTROLLER
  The Brat sports a highly customizable 16 position rotary switch lighting controller.
• COMPACT DESIGN
  We understand space can be a struggle in a boat or RV. With that in mind we kept the physical design of the Brat compact ​without sacrificing performance.
• SEALED FOR HARSH ENVIRONMENTS
  All Brats are weather proof, sealed in a clear UV stabilized polycarbonate housing! (Type 3R/IP55).
• REPAIRABLE
  Field repairable printed circuit board (by a qualified technician)
• BUILT IN ARLINGTON, WA - USA

Replaces eleven of the industries’ leading controllers with just one model. The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock.

Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications. The Brat doesn't skimp on features, including temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too!

FAQs

• What is the minimum voltage from the solar array required for the MNBRAT to operate?
  The PV voltage generated needs to be 2-4 10ths higher than the battery voltage to operate.

Attachments

• The Brat - Home Power Mar/Apr 2015

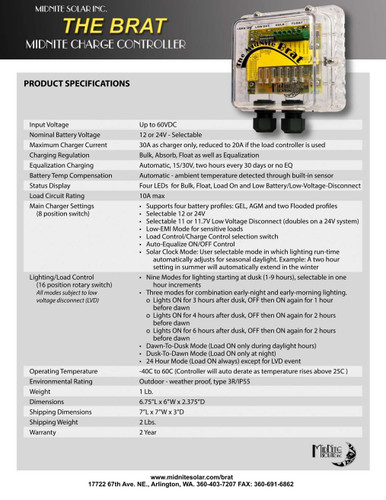

• Brat Charge Controller Brochure
• BRAT Dimensional Drawing
• MidNite Solar MNBRAT Instruction Manual
• MNBRAT Quickstart Guide
• MidNite Solar Warranty
