Fronius 4,210,093,801 Symo Advanced 20.0-3 480VAC 20kW

Fronius 4,210,093,801 Symo Advanced Grid-Tie Inverter 20.0-3 480VAC 20kW. Now integrated with SunSpec PLC.

Featuring six models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional value for states with Module Level Shutdown requirements including integrated PLC transmitter for SunSpec Rapid Shutdown communication standard, compliance with NEC pre-2014, 2014 and 2017, zero tilt mounting, light weight and field serviceability.

Features

• 3-Phase Transformerless
• Integrated 6-string Combiner-Dual MPPT
• NEC 2011, 2014 and 2017 ready
• SnapINverter Mounting System
• Advanced Grid Features
• 200VDC - 600VDC Input Range SunSpec Rapid Shutdown communication standard
• Datamanager Card not included (In multi inverter systems, use only one Datamanager card, up to 99 Symo LITE units can attached daisy chained together for monitoring).

FAQs

• Why won't my Fronius Symo Advanced inverter startup if I have a solar array connected that is equal to or greater than the required 200V Startup Voltage?
  The Fronius Symo Advanced inverter requires AC power to startup.

Attachments

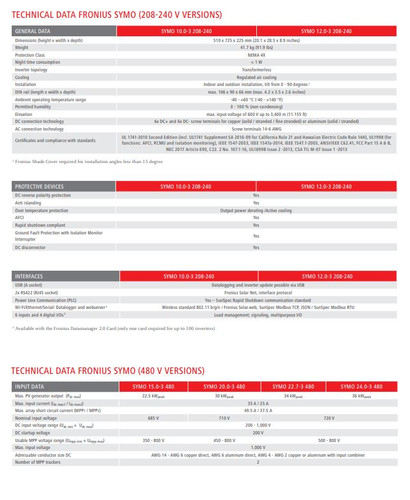

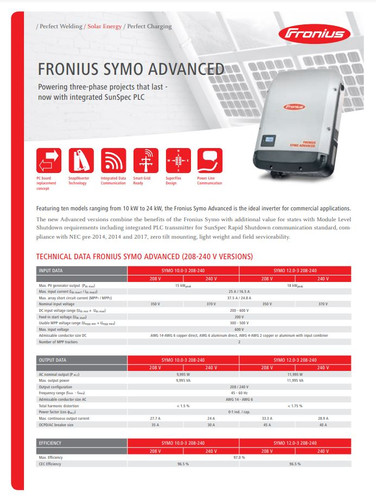

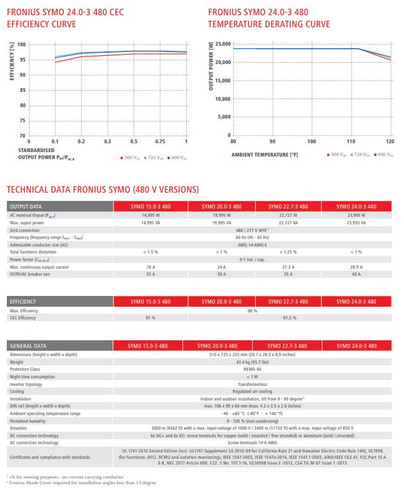

• Fronius Symo Advanced Datasheet
• Fronius Advanced Symo Installation Manual
