Enphase Energy
Enphase CT-200-SPLIT Split Core Consumption Monitoring
- SKU:
- CT-200-SPLIT
- Condition:
- New
- Availability:
- Ships in 1 business day or less.
- Weight:
- 0.60 LBS
- Shipping:
- Stellar Speed! ADD TO CART TO ESTIMATE SHIPPING
Enphase CT-200-SPLIT Split Core Consumption Monitoring, Quantity 1
Enphase split-core current transformer for consumption metering. Compatible with IQ and S series metered envoys. Two CT's are required for most residential 240V applications. Three or six for commercial.

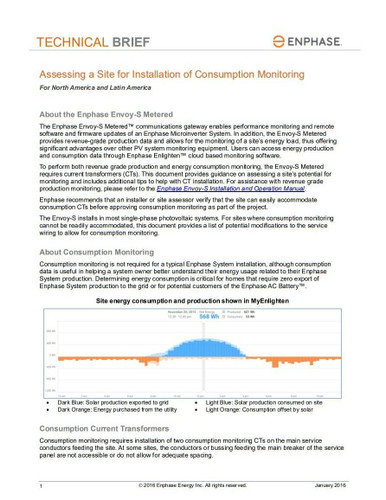

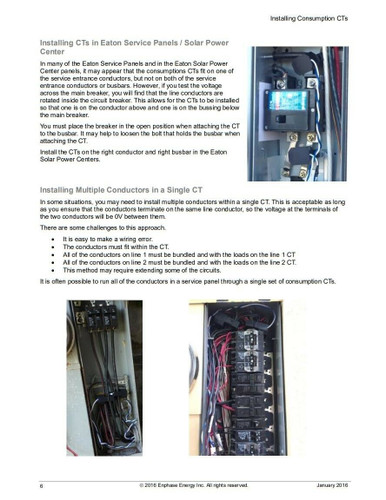

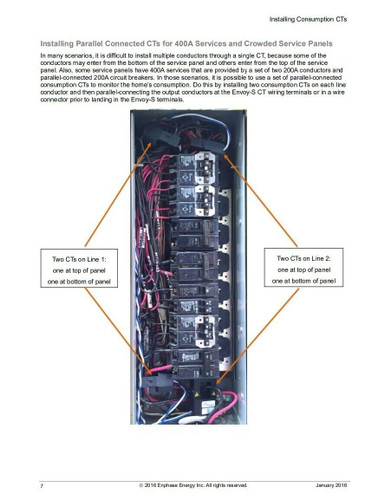

When considering consumption monitoring, first determine if the split-core consumption CT's can be readily installed around the service conductors or busbars. If the consumption CT's cannot be easily installed on the service panel, additional electrical wiring may be required to prepare the site.
Overview

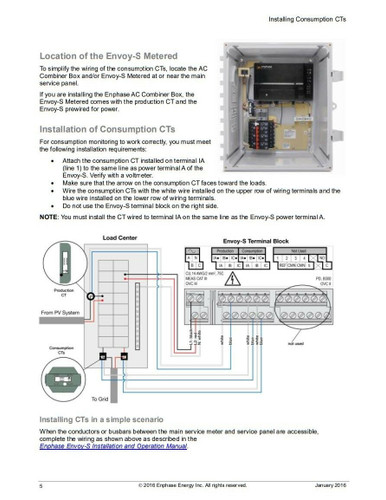

Current Transformers(CTs) enable consumption monitoring when installed with an EnvoyTM S Metered or IQTM Envoy.
- Install a pair of CTs for monitoring split-phase consumption.
- Enable whole-home consumption metering with an accuracy of +/- 2.5%.
- For Residential Use Only.
- Includes 8' 18AWG wire.
Attachments
Customer Reviews
installed and working well
After installing the CT200 consumption meters I was able to determine my espresso machine turning on at 4am the next morning costs about 15 cents. :) Nice to be able to see the electricity the house is consuming in 15 minute intervals, and compare with the production in the same time periods. Excellent product and integrates easily with the Enphase envoy contained IQ combiner 3 Nice website to use and order from, good price, and the very slow UPS handed off to Canada post shipping option had no brokerage charges or duties :)
