SMA SB RS 485-N Communication Card RS-485 Module (485USPB-NR)

SMA Communication Card RS-485 Module SB RS 485-N (485USPB-NR) Piggy Back.

The RS-485 communication system is for those situations where a power line carrier won't work. When you have to link not just several inverters, but several Sunny Boy Controls, RS-485 is the tool to use. This current-source bus line system allows simultaneous communication with many nodes to one central controller. And with its ability to link several Sunny Boy Controls the number of Sunny Boy inverters that you can control from one computer becomes virtually infinite.

Advantages:

• Has the ability to link an unlimited number of inverters to one computer.
• Busline communication system allows simultaneous communication to one central controller.
• Perfect for use with Sunny Data Control software.

WARNING: Completely shutdown/de-energize your solar power system (AC and DC sides) before installing this communication module. Failure to do so can lead to inverter damage.

FAQs

• How do I activate the SMA SB RS 485-N Communication Card RS-485 Module (485USPB-NR) Piggy Back?
  To activate your SMA SB RS 485-N Communication Card, the following steps are necessary:
  • Physically install the SMA SB RS 485-N Communication Card
  • Start SMA Sunny Explorer
  • Register on SMA Sunny Portal
• Is the SMA SB RS 485-N Communication Card RS-458 Module (485USPB-NR) Piggy Back compatible with Sunny Island Inverters?
  Yes, the SMA RS 485-N (485USPB-NR) is compatible with boy Sunny Boys and Sunny Islands. Here is an SMA link to an informative video by SMA on how to use the card.

Attachments

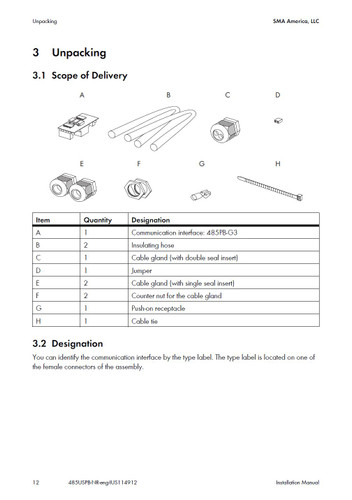

• SMA 485USPB-NR Installation Manual
