OutBack Power Systems
OutBack Power FW-IOB-S-120VAC Input/Output/Bypass Assembly
- SKU:
- FW-IOB-S-120VAC
- Condition:
- New
- Availability:
- Ships in 20 business days or less.
- Weight:
- 1.84 LBS
- Shipping:
- FREE SHIPPING

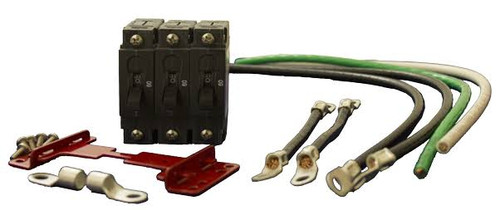

OutBack Power FW-IOB-S-120VAC Input/Output/Bypass Assembly.
Field-installable kit for by-passing the AC input to the AC output for inverter maintenance, testing or installation. Also provides over-current protection for AC input and output. Includes three 60A 120VAC single pole PANEL mount breakers, sliding bypass interlock plate, wire and hardward kit.
Specifications
- System Rating: Single-Phase 120VAC 60 Amp 7.2 kW
- Bypass Breaker: One Pole @ 60 Amps 7.2 kW
- Input Breaker: One Pole @ 60 Amps 7.2 kW
- Output Breaker: One Pole @ 60 Amps 7.2 kW
