OutBack Power PNL-80-DC Panel Mount Circuit Breaker 80A

OutBack Power PNL-80-DC Panel Mount Circuit Breaker 80A

RM88.01

SKU:: PNL-80-DC
Condition:: New
Availability:: Ships in 1 business day or less.
Weight:: 0.31 LBS
Shipping:: Stellar Speed! ADD TO CART TO ESTIMATE SHIPPING

Description

OutBack Power PNL-80-DC Panel Mount Circuit Breaker 80 Amp Single Pole with stud terminals on the back. Ring terminals required.

OutBack offers a full line of integration hardware designed to complement our power electronics products, reduce the time of installation and meet local electrical codes. It is our goal to engineer and build attractive, flexible and well designed integration hardware that is built to last.

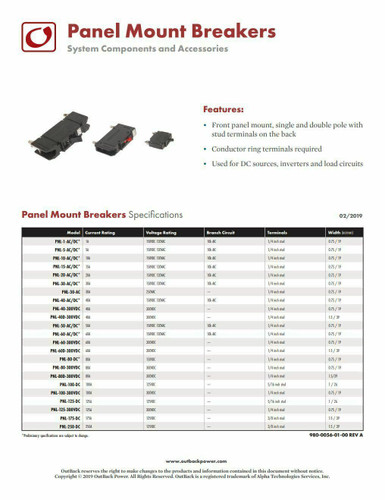

Technical Specifications

Hydraulic-magnetic type breakers
Can be used for input, output or load circuits

Variations

PNL-1-AC/DC: 1 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-5-AC/DC: 5 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-10-AC/DC: 10 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-15-AC/DC: 15 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-20-AC/DC: 20 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-30-AC/DC: 30 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-30-AC: 30 Amp, 250VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-40-AC/DC: 40 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-50-AC/DC: 50 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-60-AC/DC: 60 Amp, 150VDC and 120VAC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-80-DC: 80 Amp, 150VDC, 1/4" stud terminals, Width is 0.75" or 19mm
PNL-100-DC: 100 Amp, 125VDC, 5/16" stud terminals, Width is 1" or 26mm
PNL-125-DC: 125 Amp, 125VDC, 5/16" stud terminals, Width is 1" or 26mm
PNL-175-DC: 175 Amp, 125VDC, 3/8" stud terminals, Width is 1.5" or 39mm
PNL-250-DC: 250 Amp, 125VDC, 3/8" stud terminals, Width is 1.5" or 39mm

FAQs

How far apart are the mounting bolts?
The mounting bolts are 2 inches apart.

Customer Reviews

3.0 Based on 1 Reviews

5 ★

4 ★

3 ★

100%

2 ★

1 ★

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Mark S.

United States

04/11/2024

It's a special p/n made for Outback Power, the Carling p/n would be CA1-B0-16-890-321-BG

It's a "16" delay and it's SO long I thought it was broken! Ran it up over 112ADC and it still took quite awhile to trip! In my mind it operates like a straight thermal breaker not a hydraulic-magnetic breaker. If I knew it would take like forever to trip I would have ordered a different breaker, once again the siren song of "lowest price" got me again. lol No problem with Stellavolta other than a quirky shipping estimator at checkout.
