MidNite Solar MNDC125PLUS Mini DC Disconnect

MidNite Solar MNDC125PLUS Mini DC Disconnect.

The MNDC Plus version of the popular MNDC adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the 3/4" 125VDC breakers that range from 60 amps to 100 amps. You can also fit the MNDC-GFP80 plus four more panel mount breakers in the enclosure. Another configuration would be one MNDC-GFP, one 3/4" panel mount breaker and five din rail breakers as well as the large 125-250A inverter breaker. Mounting is provided for a 500 amp shunt and a MNTBB-R terminal bus bar. Battery negative stud is included as well as a ground busbar.

Specifications

• MNDC Plus version of the popular MNDC
• Listed by ETL for US & Canada
• Size: 17"L x 9"W x 4"D
• Weight: 8 Lbs
• Made in the USA

Attachments

• MidNite Solar MNDC 125, 175, and 250 Disconnect Instructions

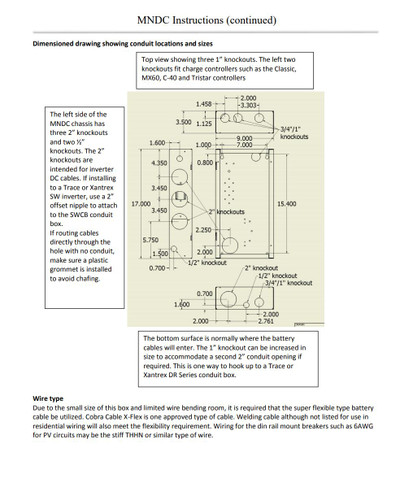

• MidNite Solar MNDCPLUS Drawing
• MidNite Solar Tax Credit
• MidNite Solar Warranty
